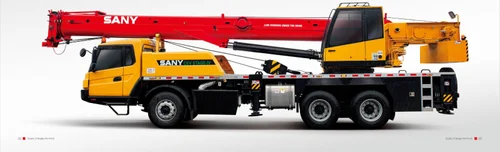

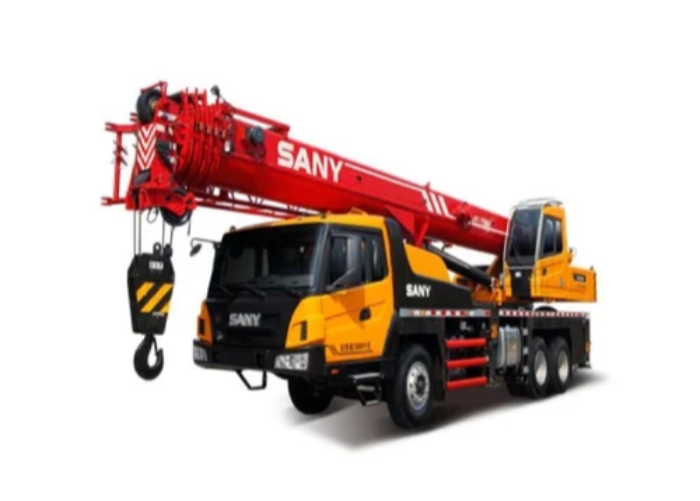

Sany STC250C 25 Ton Truck Mounted Crane

• Telescopic Boom Length: 33.5 m
• Gross Weight: 26,300 kg
• Maximum Travel Speed: 48 km/h
• Minimum Steering Radius: 12 m
• Tail Slewing Radius: 3.3 m
• Working Temperature Range: Up to 45°C
• Fixed Jib Length: 8 m
• Maximum Engine Torque: 1200 Nm/rpm
• Approach Angle: >19°
• Departure Angle: >12°
• Fuel Consumption (per 100 km): <30 L
• Number of Axles: 3
• Rated Capacity: 25 tons
• Maximum Gradeability: 32%
• Maximum Engine Power: 2100 kW/rpm
• Overall Length: 12,600 mm
• Overall Height: 3,650 mm
• Overall Width: 2,500 mm
• Minimum Steering Radius of Boom Tip: 13.65 m
• Minimum Ground Clearance: 250 mm
• Maximum Lifting Moment: 857.5 kNm
• Number of Boom Sections: 4
• Boom Shape: U-shape
• Minimum Rated Lifting Radius: 3 m
• Maximum Lifting Capacity: 25 t
• Wheel Formula: 6x4

A compact, 3-axle truck crane designed for urban and small job sites, offering high flexibility and fast mobility.

Key Features:

• Lifting Capacity: 25 tons.

• Boom Configuration: 4-section boom plus fixed jib for versatile applications.

• Engine: Reliable diesel engine, CEV Stage IV compliant, with 199 kW @ 2100 rpm.

• Compact Design: Perfect for accessing tight spaces and challenging urban sites.

• Efficiency: Quick transfer capabilities to optimize project timelines.

The SANY STC250C combines robust performance with environmental compliance, making it an ideal choice for diverse lifting operations in urban environments.
